Description

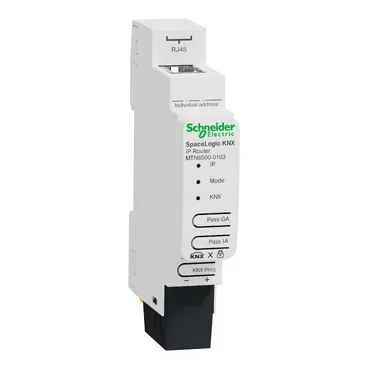

Spacelogic KNX IP Router DIN Rail. The Spacelogic KNX IP Router allows the forwarding of telegrams between different lines through a LAN (IP) as a fast backbone. In addition, this KNX IP Router is suited to connect a PC to the KNX network e.g. for ETS programming. The KNX IP Router supports KNX Security which can be enabled in ETS. As a secure router, the device allows the coupling of not secured communication on KNX TP to a secured IP backbone. For the interface functionality (tunneling) KNX security prevents unauthorized access. The router supports up to 8 tunneling channels. For each tunneling channel, a separate individual address must be configured. The IP address can be obtained by a DHCP server or by manual configuration (ETS) respectively. This KNX IP Router works according to the KNXnet/IP specification using the core, the device management, the tunneling, and the routing part. The Spacelogic KNX IP Router has an extended filter table for main group 0 to 31 and is able to buffer up to 150 telegrams. The Router is powered by the KNX bus. An additional power supply is not needed. With 2 integrated push-buttons for testing purpose and 3 status LEDs. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. The LAN network is connected via the RJ45 socket. Device width - 1 module = approx. 18 mm. Note - This application requires ETS 5 or higher. Contents - With bus connecting terminal and cable cover.
